Programming 16 bit timer on Atmega328

Atmega328 has one 16 bit timer which is more powerful comparing to 8 bit timers. 16 bit timer is called Timer/Counter1. Counter1 has twice more bits than 8 bit Counter0, so you get more counts leading to longer duration and more precise timings.

16 bit timer has pretty same functionality as Timer0 plus more specific ones. We won’t be discussing Normal, CTC, fast PWM and correct phase PWM modes as these are equivalent to Timer0. But lets focus on fresh things. There we have a new module called Input Capture Unit along with Input Capture Flag (ICF1) interrupt and new waveform generating mode called Phase and Frequency Correct PWM.

Dealing with 16 bit registers

Working with 16 bit timer means dealing with 16 bit registers:

  • TCNT1: [TCNT1H and TCNT1L] – Timer/Counter1;
  • OCR1A: [OCR1AH and OCR1AL] – Output Compare Register 1 A;
  • OCR1B: [OCR1BH and OCR1BL] – Output Compare Register 1 B;
  • ICR1: [ICR1H and ICR1L] – Input Capture Register 1

As AVR is 8 bit microcontroller it has an 8 bit bus structure. So whole 16 bit number cant be stored at once. When programming in C you can usually write 16 bit number in simple manner like this:

OCR1A=0x2564;

Compiler will sort this out automatically. But if you need to write separate bytes of 16 register then you need to write high byte first and then low:

OCR1AH=0x25;

OCR1AL=0x64;

This is because 16 bit registers share one special TEMP register allowing to write 16 bit value at once, but using two clock cycles. If you need to read 16 bit register first has to be low byte and then high.

Power of Input Capture unit

Input capture functionality is special feature of 16 timer. It gives a new way of using timer. It is using external signal on ICP1 pin (or comparator output) to save current counter value to Input Capture Register ICR1 and generate interrupt (ICF1) of event.

In this very simplified diagram you can see how it works. What this is is good for? Actually this functionality is used a lot when you need to measure signal frequency, duty cycle. Schema is simple – save ICR1 at least two register values when calling interrupts and then calculate what ever you want. Be sure to save Input Capture Register Value before another event occurs as it will overwrite current value.

Input capture may be triggered by rising or falling edge and even noise canceler may be used to make sure signal is real. Ok, its time for example. Lets measure the duty cycle of signal fed in to ICP1 pin.

So we are going to capture three time-stamps needed to calculate duty cycle. One pair for measuring signal at level “1” and second pair of times-tamps to measure signal period. Seams easy. But there are some hidden stones. First one – what if signal frequency is to big. In this case we cannot do much in software level – just external frequency dividers would help. Second problem is when signal is too slow and one full timer count-up may not be enough. Here we can find a solution by introducing software counter to keep timer overflow counts. So we are going to deal with two interrupts that may overlap. Lets see how it goes:

#include <avr/io.h>
#include <avr/interrupt.h>
//Counts overflovs
volatile uint16_t T1Ovs1, T1Ovs2;
//Variables holding three timestamps
volatile uint16_t Capt1, Capt2, Capt3;
//capture Flag
volatile uint8_t Flag;
//Initialize timer
void InitTimer1(void)
{
//Set Initial Timer value
TCNT1=0;
//First capture on rising edge
TCCR1B|=(1<<ICES1);
//Enable input capture and overflow interrupts
TIMSK1|=(1<<ICIE1)|(1<<TOIE1);
}
void StartTimer1(void)
{
//Start timer without prescaller
TCCR1B|=(1<<CS10);
//Enable global interrutps
sei();
}

//capture ISR
ISR(TIMER1_CAPT_vect)
{
if (Flag==0)
	{
		//save captured timestamp
		Capt1=ICR1;
		//change capture on falling edge
		TCCR1B&=~(1<<ICES1);
		//reset overflows
		T1Ovs2=0;
	}
if (Flag==1)
	{
		Capt2=ICR1;
		//change capture on rising edge
		TCCR1B|=(1<<ICES1);
		//save first overflow counter
		T1Ovs1=T1Ovs2;
	}
if (Flag==2)
	{
		Capt3=ICR1;
		//stop input capture and overflow interrupts
		TIMSK1&=~((1<<ICIE1)|(1<<TOIE1));
	}
//increment Flag
Flag++;
}
//Overflow ISR
ISR(TIMER1_OVF_vect)
{
//increment overflow counter
T1Ovs2++;
}
int main(void)
{
//dutycycle result holder
volatile uint8_t DutyCycle;
InitTimer1();
StartTimer1();
	while(1)
	{
		//calculate duty cycle if all timestamps captured
		if (Flag==3)
		{
				DutyCycle=(uint8_t)((((uint32_t)(Capt2-Capt1)+((uint32_t)T1Ovs1*0x10000L))*100L)
					/((uint32_t)(Capt3-Capt1)+((uint32_t)T1Ovs2*0x10000L)));
				//send Duty Cycle value to LCD or USART
				//clear flag
				Flag=0;
				//clear overflow counters;
				T1Ovs1=0;
				T1Ovs2=0;
				//clear interrupt flags to avoid any pending interrupts
				TIFR1=(1<<ICF1)|(1<<TOV1);
				//enable input capture and overflow interrupts
				TIMSK1|=(1<<ICIE1)|(1<<TOIE1);
		}
	}
}

You can see in example that measuring of DutyCycle practically doesn’t depend on frequency – well at some range. If running an MCU at 16 MHz then measured waveform period can range from about 1µs or less up to several seconds considering that 16 bit interrupt counter can have max 65536 values. I don’t say that this algorithm is effective or good for any reasons. If you actually know the range of PWM frequency you can do way better approach. This example is just to represent how input capture mode works.

Phase and frequency correct PWM

This may sound a little scary but this mode is really easy to understand. We talked a bit about Phase correct PWM for Timer0. The main difference between phase correct and phase and frequency correct PWM is where the compare values and top values are updated. In phase correct mode these values were updated when counter reaches TOP value. In phase and frequency correct mode TOP values and compare values are updated when counter reaches BOTTOM. This way wave form gets symmetrical in all periods. In this mode TOP value can be defined in two ways by ICR1 register, which is free in this mode, or OCR1A. Usually it is better to use ICR1 register – then you have free OCR1A register to generate waveforms. But if you need to change PWM frequency pretty fast then use OCR1A because it is double buffered. Lowest TOP value can be 3 while highest 0xFFFF. Lets make simple example of phase and frequency correct mode. We will generate 500Hz PWM – non inverted on OC1A and inverted on OC1B pins.

#include <avr/io.h>
void InitPort(void)
{
//Init PB1/OC1A and PB2/OC1B pins as output
DDRB|=(1<<PB1)|(1<<PB2);
}
void InitTimer1(void)
{
//Set Initial Timer value
TCNT1=0;
//set non inverted PWM on OC1A pin
//and inverted on OC1B
TCCR1A|=(1<<COM1A1)|(1<<COM1B1)|(1<<COM1B0);
//set top value to ICR1
ICR1=0x00FF;
//set corrcet phase and frequency PWM mode
TCCR1B|=(1<<WGM13);
//set compare values
OCR1A=0x0064;
OCR1B=0x0096;
}
void StartTimer1(void)
{
//Start timer with prescaller 64
TCCR1B|=(1<<CS11)|(1<<CS10);
}
int main(void)
{
InitPort();
InitTimer1();
StartTimer1();
	while(1)
	{
		//do nothing
	}
}

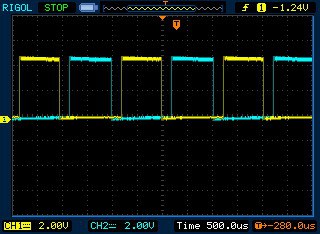

This is it with 16-bit timer. Its only a fraction of what timer can do. I bet you can run other modes by your own now. So keep practicing. Codes to download are here[25KB].

Bookmark the permalink.

20 Comments

  1. You can’t disable interrupts within an ISR. The final RETI instruction will set the global I bit.

    Would you like me to act as a reviewer for your material? I’d be happy to help. I truly appreciate your efforts with the tutorials.

  2. Pingback: Electronics-Lab.com Blog » Blog Archive » Programming 16 bit timer on Atmega328

  3. Yep – somehow I missed that. Anyway I was thinking of doing DutyCycle calculations inside ISR(TIMER1_CAPT_vect)interrupt – so disabling and enabling wouldn’t be an issue.
    Reviewing would be great. Even a contributing – one person job leads to more errors.

  4. Corrected the code. Instead disabling interrupts I stooped timer until Duty cycle is calculated. Then timer is started again.

  5. I don’t think that will work. You are stopping the Timer1 clock but this does not stop CLKio, so the IC edge detectors will still operate and generate interrupts. The conventional approach is to disable the IC interrupt instead (ICIE1).

  6. (my last comment disappeared?)

    Disabling the Timer1 clock is not the same as disabling the interrupt. The Input Capture edge detectors operate from CLKio, which keeps going. The conventional approach is to enable/disable the Input Capture Interrupt.

  7. (my last comment disappeared?) – Could be captcha problem. Somehow it was disabled automatically as some other comments.
    Thank you for finding this error. It really keeps interrupting and capturing timestamps of stopped timer what leads to wrong calculations. Just disabled TIMER1_CAPT interrupts to avoid this.

  8. Just curious. Are you finding these tutorials useful and clear enough? Feel free to add suggestions where to pay more attention to: explanations, technical details, code examples.

  9. Personally, I don’t need your tutorials, but if someone else is going to the considerable effort to write them then I’m happy to lend my experience to the process. I’m fortunate in having been into embedded software as a career for many years, and have already fallen into all the usual pit-falls!

    Incidentally, in your corrected code, you can remove the redundant Timer clock disables/enables (apart from the initial one), but just before you re-enable the interrupt you should clear the ICF1 flag by writing to TIFR1. This is because you will probably have an ‘old’ interrupt pending that you want to ignore.

  10. These pit-falls is probably most important part when learning. Your experience is invaluable here. I hope you will keep an eye in future.
    Regarding corrections. I left Timer running but disabled the capture and overflow interrupts. After calculus done cleared interrupt flags in case any presence of them and re-enabled interrupts. This should work. I understand that program layout isn’t the best but this intended to be only to show how input capture works.

  11. You shouldn’t use a read-modify-write for the timer interrupt flags register (for exactly the same reason as with PIN registers). You may clear flags that you didn’t intend to, and although it won’t affect this example, it’s not good to leave a ‘trap’ set like this.

    Sorry to be pedantic on things like this, but if people try to use this code for their own experiments, they will have problems if they try to extend the functionality at all.

  12. Don’t be sorry. This is very important to do it right at the very beginning. This is what a tutorial is for. Gladly I’m also pulling some bad habits out.
    Fixed. Thanks.

  13. The duty cycle calculation really doesn’t need 64-bit integers. That one line causes the code to grow from ~500 bytes to ~5500 bytes!!! And I don’t think it will work since the casts are performed too late, which will therefore overflow the 16-bit multiply that will be implemented. Also, the overflows should be multiplied by 0x10000 instead of 0xFFFF.

    It’s still not pretty, but this works and saves about 4.5kB of program space:
    DutyCycle = (uint8_t)((((uint32_t)(Capt2 – Capt1) PLUS ((uint32_t)T1Ovs1 * 0x10000L)) * 100L) / ((uint32_t)(Capt3 – Capt1) PLUS ((uint32_t)T1Ovs2 * 0x10000L)));

    I’ve used PLUS since they seem to get removed when posting.

    Note: it is vital that the subtraction is performed in unsigned 16-bit math then cast to 32-bit – this then gives the right answer even when Capt1 is larger than Capt2.

  14. I’m wandering why I casted to 64 bit values while keeping 32 bits in mind? Probably did this absently.
    Tested your code with simulator -works OK. Thanks.

  15. The Read-Modify-Write has crept back in on TIFR1 😉

  16. Thanks. Copied wrong part 🙂
